Object-Oriented Design (OOD) is a software design methodology that uses abstraction to create models based on real-world entities. OOD employs various techniques, including inheritance, polymorphism, encapsulation, and abstraction, to reduce complexity and improve design efficiency.
The key components of Object-Oriented Design are:
- Classes: Classes are blueprints or templates that describe the common attributes and behaviors of a type of object. Each object is an instance of a class.
- Objects: Objects are individual entities that have a state and behavior defined by their class. Each object is an instance of a class.
Object-Oriented Design follows four generally recognized fundamental principles, which are:
- Inheritance: Allows derived classes to inherit characteristics from base classes, promoting code reuse and organization.
- Polymorphism: Refers to an object's ability to take on many forms, allowing the same method name to be used for different types of operations.
- Encapsulation: Hides the internal implementation and exposes only the interfaces to other objects. This ensures data integrity by protecting it from unauthorized access.
- Abstraction: Allows modeling complex objects and object systems by focusing on essential characteristics. This improves efficiency by enabling the reuse of design patterns.
The purpose of OOD is to enhance software flexibility, modularity, and reusability by structuring it around objects rather than procedures. Classes, objects, and these fundamental principles are used together to develop robust, scalable, and efficient software applications and systems.

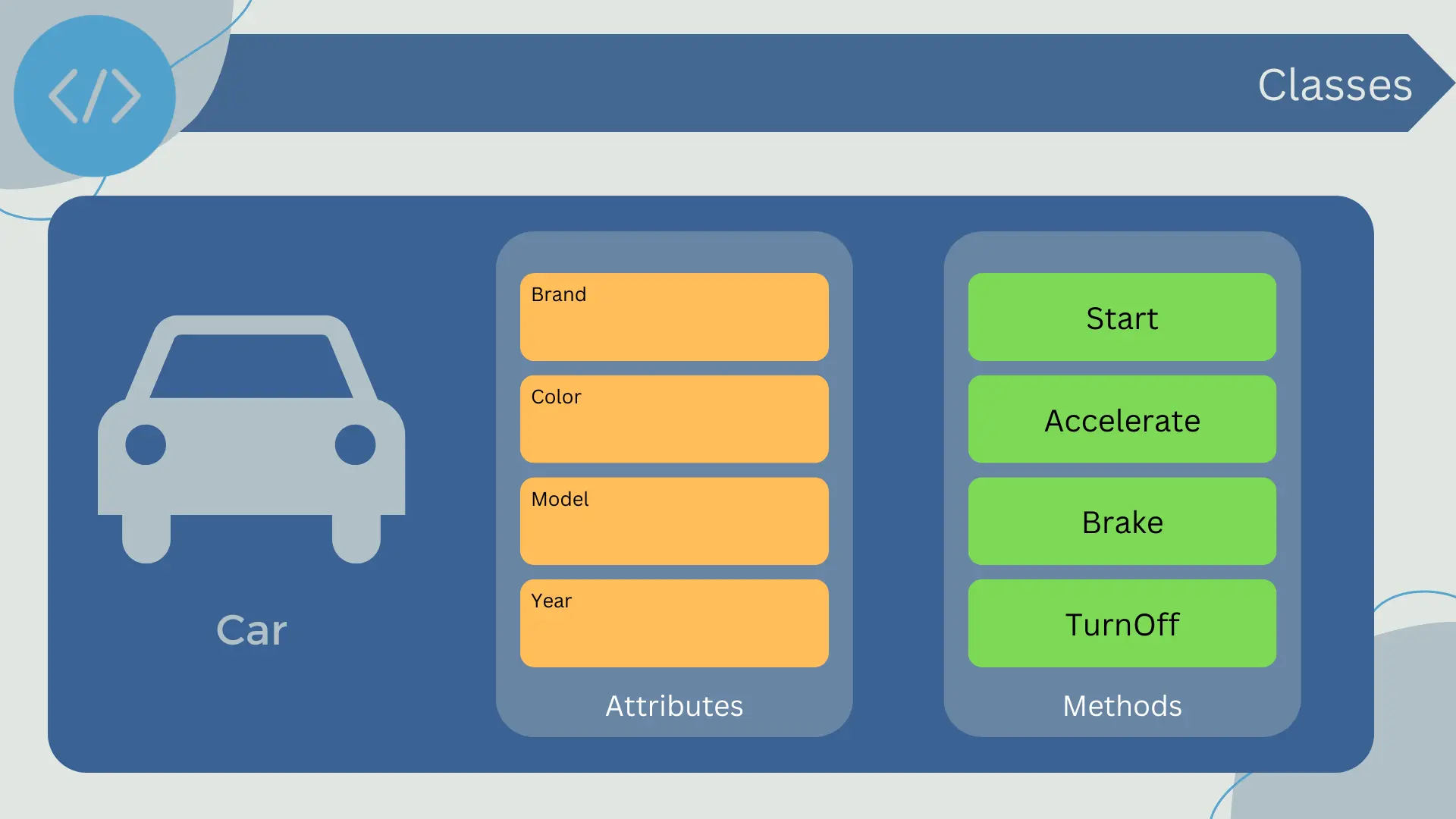

A class is a fundamental construct in OOD and represents a type of entity or thing. It serves as a template or blueprint for defining the properties (attributes) and behavior (methods) of that entity.
- Attributes: Class attributes define the properties or characteristics common to all instances of that class. For example, in a "Car" class, some attributes could be "brand," "color," "model," and "year." These attributes are also called instance variables because each instance of the class (each object created from the class) will have its own set of these variables.
- Methods: Methods define the behavior of a class, i.e., the operations it can perform. Continuing with the "Car" class example, some methods could be "start," "accelerate," "brake," and "turn off." Each method has a specific implementation that determines how the operation is performed. For example, the "accelerate" method could increase the value of a "speed" attribute by a certain amount.
In addition, there are other concepts related to classes worth mentioning:
- Visibility: Visibility is another fundamental concept in classes and refers to the scope of attributes and methods within and outside the class. Attributes and methods can be public (accessible from anywhere), private (only accessible from within the class), or protected (accessible from the class and any class that inherits from it). This control of visibility is an important aspect of encapsulation, one of the fundamental principles of OOD.
- Constructor and Destructor: Classes in OOD generally include a constructor method, used to initialize new objects of the class, and a destructor method, used to clean up any resources the object may have used. For example, the constructor of the "Car" class could take values for "brand," "model," and "year," and use them to initialize the corresponding attributes.
In summary, a class in OOD is a template that defines a set of attributes and methods that will be common to all instances of that class. These attributes and methods define the state and behavior of the entity the class represents.

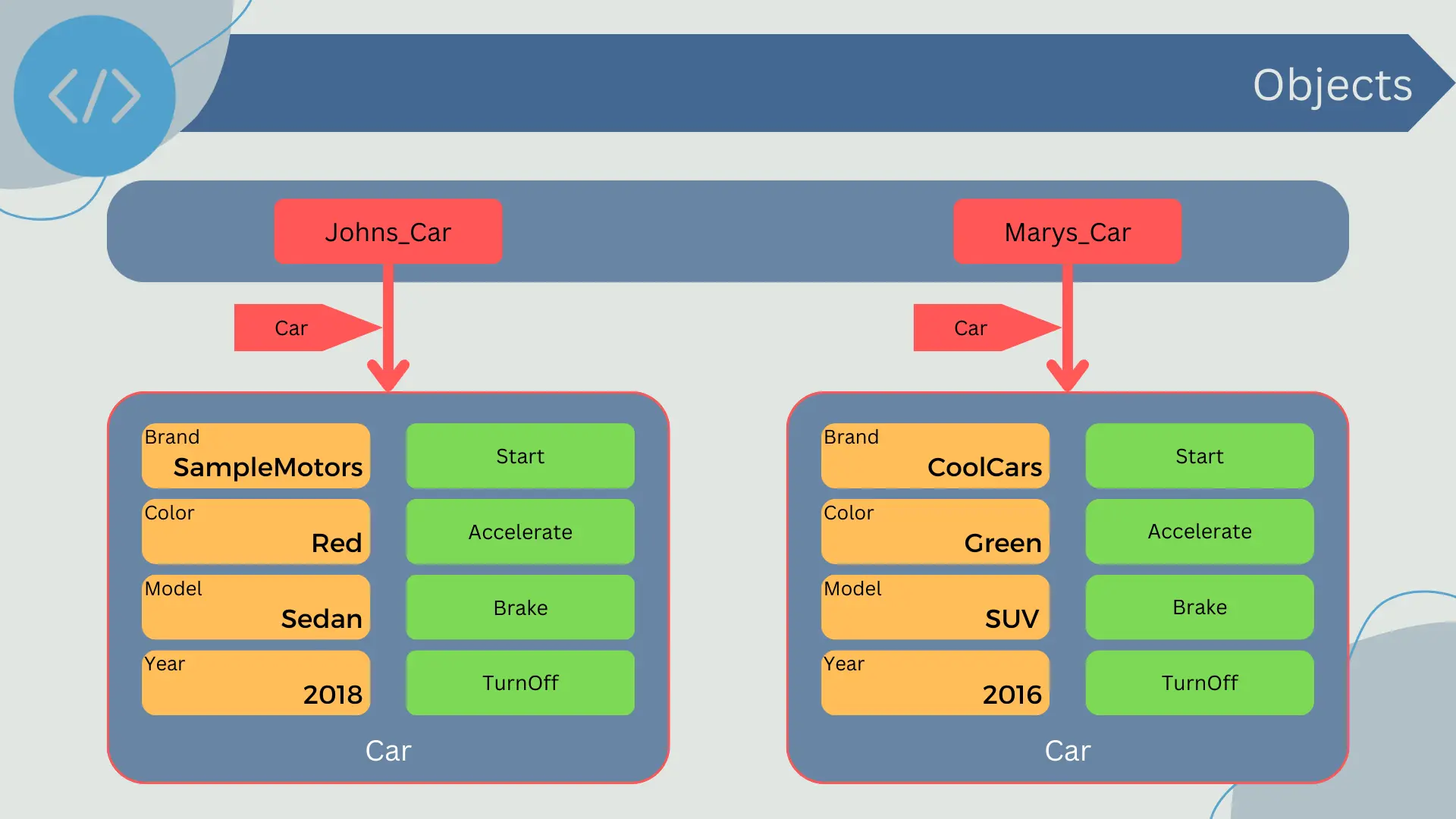

In OOD, an object is an instance of a class. Each object has a state and behavior defined by the attributes and methods of its class. However, the specific values of those attributes are unique to each object, meaning that while two objects may belong to the same class, they don't necessarily have to have the same state.
An object is a concrete entity that encapsulates both data (through its attributes) and behavior (through its methods) into a single entity. This allows working with abstract entities at a more intuitive and concrete level.
Objects are the fundamental units of systems in OOD, and all program logic is implemented in terms of interactions between objects. These interactions can involve manipulating the state of an object, querying the state of an object, or requesting an object to perform some action.
Additionally, objects can interact and communicate with each other through their public interfaces, i.e., through a set of methods that each object exposes to the outside world. These interfaces define how other objects can interact with an object but hide the internal implementation of those methods, providing a mechanism for hiding complexity and protecting the object's internal data.
Therefore, an object is an independent entity with defined state and behavior that encapsulates related logic and data and can interact with other objects. The ability to encapsulate data and behavior into objects allows for greater modularity, reusability, and maintainability in software design.
Fundamental Principles in OOD
The fundamental principles of Object-Oriented Design (OOD) form the basis of the OOD design approach and are essential for creating efficient, scalable, and maintainable software systems.

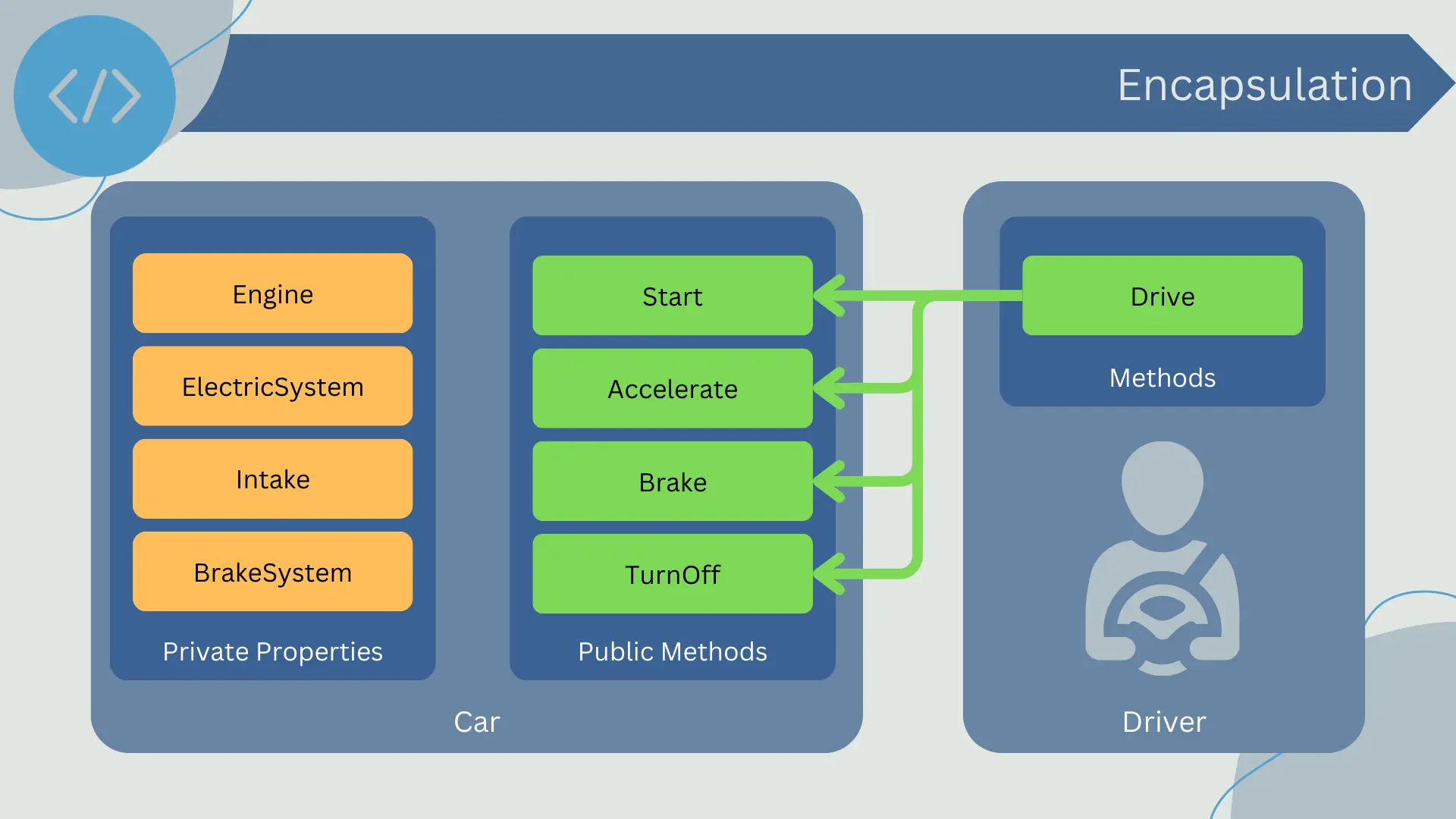

Encapsulation refers to the practice of hiding the implementation details of a class and providing a clear and consistent public interface:
- Data Hiding: At the core of encapsulation is the concept of data hiding. The internal data of a class (its attributes) is made private, meaning it can only be accessed or modified directly by methods within the same class. This protects data against inadvertent changes and allows the object's state to remain consistent.
- Class Interface: The interface of a class is the set of public methods it provides for other objects to interact with it. Methods are the only ways to interact with the internal data of the class. This allows strict control over how and when the data is modified.
- Cohesion: Encapsulation also promotes cohesion, which is the idea that a class should have a single well-defined responsibility. All methods and attributes of the class should be related to that responsibility. This cohesion makes the code more understandable and easier to maintain and reuse.
- Coupling: By providing a stable and well-defined interface, encapsulation helps reduce coupling between classes, meaning classes are less dependent on each other. If a class changes its internal implementation but maintains the same public interface, other classes depending on it don't need to change.
Encapsulation is a powerful tool for handling complexity in software design and is crucial for creating robust, secure, and maintainable software systems.

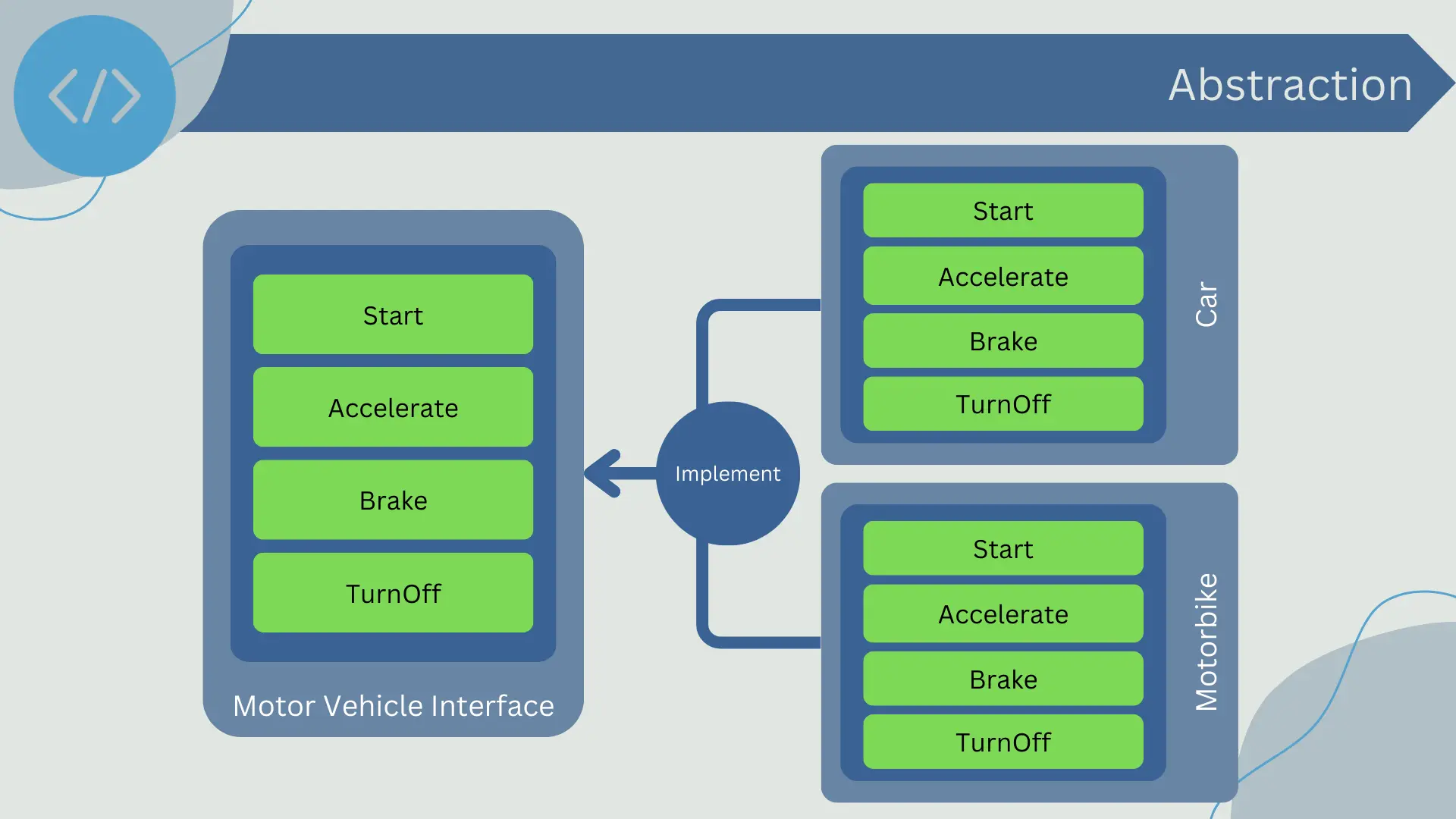

Abstraction is another fundamental principle of Object-Oriented Design. It involves simplifying complex systems by modeling them in terms of high-level interactions, hiding more complicated implementation details that are not necessary to understand the system at that level.
In object-oriented programming, different levels of abstraction are used to represent and work with complex systems. At the highest level, you can have objects representing broad and complex concepts, while at lower levels, objects can represent more detailed and specific parts of the system.
Abstraction is closely related to the use of interfaces and inheritance. Interfaces define a contract for classes, specifying which methods they must implement. Inheritance allows creating new classes based on existing ones, inheriting their attributes and methods and enabling their extension or modification.
Abstraction helps manage complexity by allowing developers to focus on the level of detail relevant to their current task. It also promotes code reuse, as common abstractions can be defined once and then reused in different parts of the system.
Abstraction is essential in object-oriented design as it provides a way to organize and structure code in a way that reflects the structures and relationships of the problem being solved.

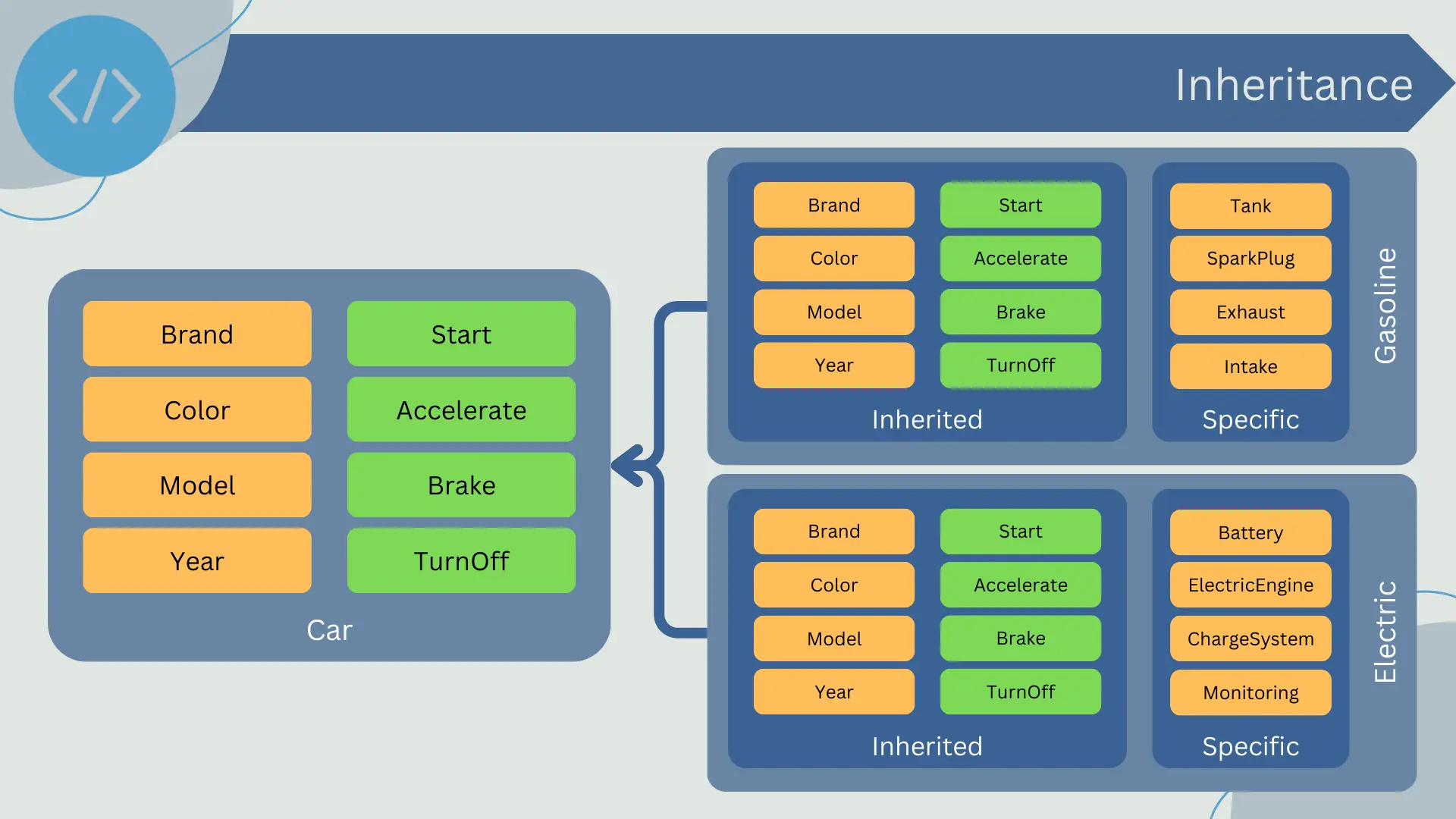

Inheritance is an essential principle of Object-Oriented Design (OOD) that enables code reuse and the organization of classes into hierarchies.
In the context of OOD, inheritance is a mechanism that allows a class to acquire the properties and behaviors of another class. The class being inherited is called the "superclass" or "base class," and the one inheriting from it is the "subclass" or "derived class." The subclass inherits all attributes and methods from the superclass and can add, override, or modify existing ones.
One of the most significant benefits of inheritance is code reuse. If several classes share certain behaviors and properties, you can define those common features in a superclass and then create subclasses that inherit from it. This reduces code redundancy and facilitates maintenance.
Inheritance allows establishing a hierarchy of classes that reflects the "is a type of" relationships between different concepts in the problem domain. For example, in an employee management application, you could have a superclass "Employee" with subclasses like "Manager," "Engineer," "Salesperson," etc.
While inheritance is a powerful tool, it should be used with care. Overly deep or complex inheritance hierarchies can make the code more difficult to read and maintain. It's advisable to favor composition over inheritance when the relationships between classes are "has a" rather than "is a type of."
Polymorphism is a fundamental principle of Object-Oriented Design (OOD) that allows objects of different types to be treated as objects of the same type.
In the context of OOD, polymorphism refers to the ability of an object to take on many forms. The most common scenario is when a reference to a base class can refer to objects of any derived class. This is a powerful mechanism that enables writing more generic, flexible, and reusable code.
Polymorphism can manifest in two ways: static and dynamic:
- Static Polymorphism, also known as method overloading, occurs when two or more methods within the same class have the same name but different parameters.

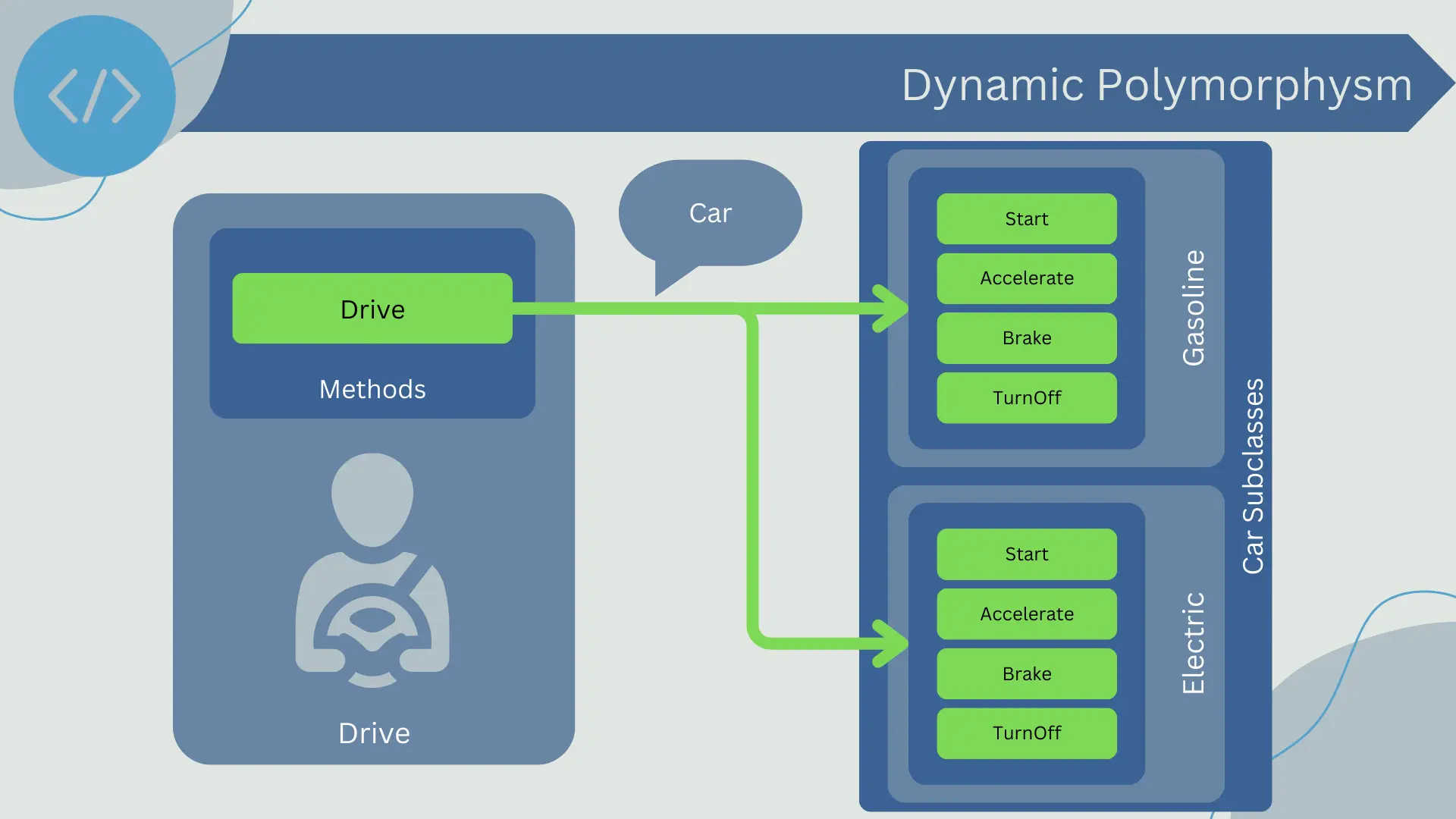

- Dynamic Polymorphism, on the other hand, occurs when a superclass or interface references a subclass, allowing the correct method to be executed at runtime.
The primary benefit of polymorphism is that it allows treating objects of different classes as if they were of the same type. This leads to simpler and easier-to-understand code. Moreover, polymorphism encourages code reuse and provides a means to implement behavior-level abstractions.
In many object-oriented programming languages like Java and C#, polymorphism is also achieved through the use of interfaces. Interfaces define a contract for classes, enabling classes with vastly different implementations to be used interchangeably in code that adheres to the interface contract.
While polymorphism is a powerful principle of OOD, it's essential to use it wisely. Excessive method overloading can make the code more difficult to read and maintain. Additionally, improper use of polymorphism can lead to runtime errors that are hard to trace.
